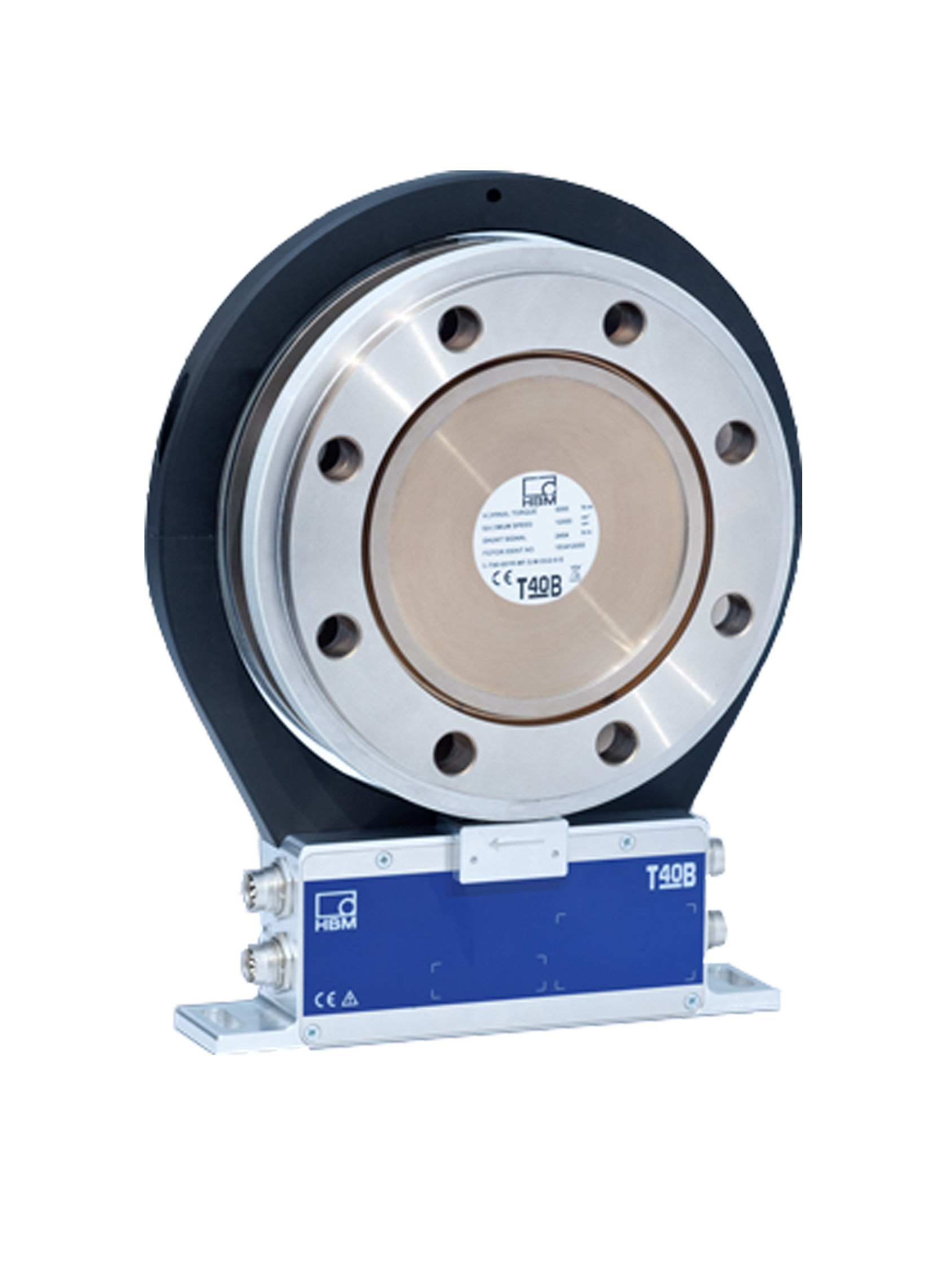

T40B 以高精度、再現性和魯棒性而著稱，非常適合用于靜態和動態扭矩測量。包括滯后和高溫穩定性，扭矩傳感器具有 0.03% 的線性精度?？蓛戎么艑W轉速測量系統，在傳動系統中進行功率測量。非接觸設計和數字信號傳輸確保了更高的安全性，并具有免維護特性。EtherCAT 的 TIM-EC接口模塊和 PROFINET 的 TIM-PN 可將扭矩和轉速信號與最先進的測試臺系統進行集成，確保獲得最高的性能和高靈活性。
HBM 精度等級: 0.05
額定扭矩: 50 Nm 到 10 kNm

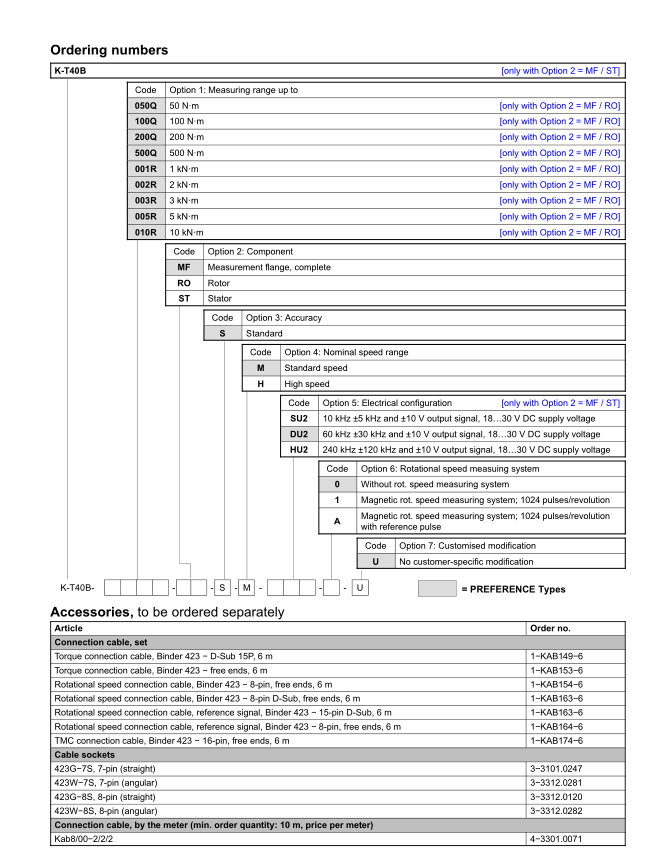

Ordering numbers
K-T40B [only with Option 2 = MF / ST]
Code Option 1: Measuring range up to
050Q 50 N·m [only with Option 2 = MF / RO]
100Q 100 N·m [only with Option 2 = MF / RO]
200Q 200 N·m [only with Option 2 = MF / RO]
500Q 500 N·m [only with Option 2 = MF / RO]
001R 1 kN·m [only with Option 2 = MF / RO]
002R 2 kN·m [only with Option 2 = MF / RO]
003R 3 kN·m [only with Option 2 = MF / RO]
005R 5 kN·m [only with Option 2 = MF / RO]
010R 10 kN·m [only with Option 2 = MF / RO]
Code Option 2: Component
MF Measurement flange, complete
RO Rotor
ST Stator
Code Option 3: Accuracy
S Standard
Code Option 4: Nominal speed range
M Standard speed
H High speed
Code Option 5: Electrical configuration [only with Option 2 = MF / ST]
SU2 10 kHz ±5 kHz and ±10 V output signal, 18…30 V DC supply voltage
DU2 60 kHz ±30 kHz and ±10 V output signal, 18…30 V DC supply voltage
HU2 240 kHz ±120 kHz and ±10 V output signal, 18…30 V DC supply voltage
Code Option 6: Rotational speed measuing system
0 Without rot. speed measuring system
1 Magnetic rot. speed measuring system; 1024 pulses/revolution
A
Magnetic rot. speed measuring system; 1024 pulses/revolution
with reference pulse
Code Option 7: Customised modification
U No customer-specific modification
K-T40B- - - S - M - - - U
Accessories, to be ordered separately
Article Order no.
Connection cable, set
Torque connection cable, Binder 423 ? D-Sub 15P, 6 m 1?KAB149?6
Torque connection cable, Binder 423 ? free ends, 6 m 1?KAB153?6
Rotational speed connection cable, Binder 423 ? 8-pin, free ends, 6 m 1?KAB154?6
Rotational speed connection cable, Binder 423 ? 8-pin D-Sub, free ends, 6 m 1?KAB163?6
Rotational speed connection cable, reference signal, Binder 423 ? 15-pin D-Sub, 6 m 1?KAB163?6
Rotational speed connection cable, reference signal, Binder 423 ? 8-pin, free ends, 6 m 1?KAB164?6
TMC connection cable, Binder 423 ? 16-pin, free ends, 6 m 1?KAB174?6
Cable sockets
423G?7S, 7-pin (straight) 3?3101.0247
423W?7S, 7-pin (angular) 3?3312.0281
423G?8S, 8-pin (straight) 3?3312.0120
423W?8S, 8-pin (angular) 3?3312.0282
Con
* 元素路徑: body > p > img當前已輸入2088個字符, 您還可以輸入97912個字符。 |
nection cable, by the meter (min. order quantity: 10 m,
高精度
線性度（包括滯后）僅為0.03%
高溫穩定性
比例計量法確保更高的測量精度和穩定性
極具成本效益的高性能扭矩傳感器，用于測試臺，測量結果具有極高的精度和再現性
可靠
帶錯誤檢測的數字傳輸確保了無干擾數據傳輸
強度高，堅固耐用
創新數字數據傳輸提供可靠的測量數據，即使在惡劣的環境條件下
靈活
堅固的磁學轉速測量系統
模擬和數字接口，便于與不同測試臺系統集成
可選帶有參考脈沖的魯棒磁學轉速測量系統，用于獲取絕對轉子位置
極高靈活性，面向現在和未來的測量任務
